  • Product model:DX328 IP Mux-scrambling and QAM
  • Product line:IP QAM

product details

Input:ASI, IP, Tuner   Output:IP-MPTS

Outline

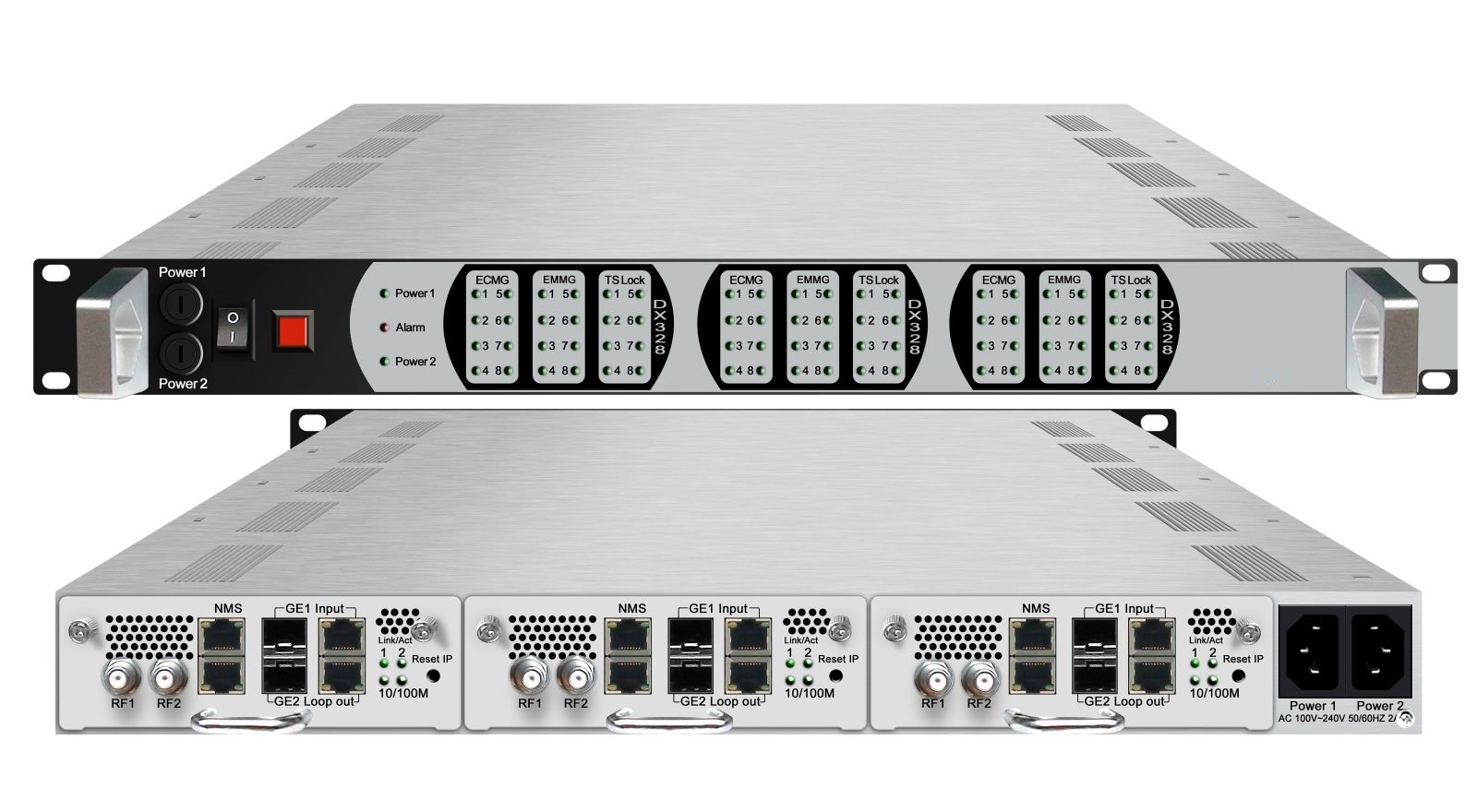

DX328 IP Mux-Scrambling and modulation module is the latest generational Mux-scrambling-modulating all-in-one device developed by Xielide. Each DX328 daughter  card combines 8 multiplexing modules, 8 scrambling modules and 8 QAM (DVB-C) modulating modules, which makes it posssible that every daughter card works stand-alone. It supports maximum 256 IP MPTS/SPTS (per daughter card) input through the GE port and 8 adjacent carriers(30M~860M)output through the two RF output interfaces.

This DX328 IP Mux-Scrambling and modulation module has adopted slot structure to allow maximum 3 DX328 cards to insert one device simultaneously. To draw a conclusion, its excellent integrated level, powerful performance and low cost make it adequate for the new generation CATV system.

Inner Principle of a single daughter card



Features

  • Dual power supply (option)
  • 1 GE input, RJ45 interface or SFP
  • Supports up to 256 channels TS over UDP/RTP, MPTS or SPTS per card
  • Supports unicast and multicast, supports IGMP v2v3
  • Max 840Mbps for all input
  • Supports MPEG2/MPEG-4 re-multiplexing and MPTS/SPTS multiplexing
  • Supports accurate PCR adjusting
  • Supports PID filtering, remapping and PSI/SI editing
  • Supports up to 180 PIDS remapping per channel
  • Support DVB general scrambling system(ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197
  • Support multiplexed or scrambled TS over UDP/RTP output
  • 8 adjacent QAM carriers output per card, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B/C
  • Supports symbol rate 5.0~9.0Msps, 1Ksps stepping
  • Supports constellation: 16QAM/32QAM/64QAM/128QAM/256QAM
  • Supports RS (204,188) encoding
  • RF output frequency range: 30~860Mhz, 1Khz stepping
  • RF output level: -16~0dbm(per QAM carrier), 0.5db stepping
  • Excellent RF performance, MER≥40db
  • Modular design,1U chassis support 3 modules , 4U chassis support 12 modules
  •  Support NMS/SNMP management

 Specifications

Input

Interface

1GE input, RJ45 interface or SFP

Transport Protocol

TS over UDP/RTP, unicast and multicast, IGMP V2/V3

Transmission Code

Max 840Mbps for all input

MUX

(each card)

Input Channel

256

Output Channel

8

Max PIDs

180 per channel

Functions

PID remapping

PCR accurate adjusting

PSI/SI table automatically generating

Scrambling

Parameters

Max simulscrypt CA

4

Scramble Standard

ETR289, ETSI 101 197, ETSI 103 197

Connection

Local/remote connection

Modulation

Parameters

QAM Channel

8

Modulation Standard

DVB-C(EN300 429), ITU-T J.83A/B/C

Symbol Rate

5.0~9.0Msps, 1ksps stepping

Constellation

16, 32, 64 , 128, 256QAM

FEC

RS(204, 188)

RF Output

Interface

2 F typed output port for 8 carriers, 75Ω impedance

RF Range

30~860MHz, 1kHz stepping

Output Level

-16dBm~0dBm(per QAM carrier), 0.5dB stepping

MER

≥ 40dB

ACLR

-55dBc

System

Network management software (NMS/SNMP)

General

Demission (WxLxH)

630mm×440mm×44.5mm

Weight

9kg

Temperature

0~45℃(operation),-20~80℃(storage)

Power Supply

AC 100V±10%,50/60Hz or AC 220V±10%,50/60Hz

Consumption

15.4W
