Outline

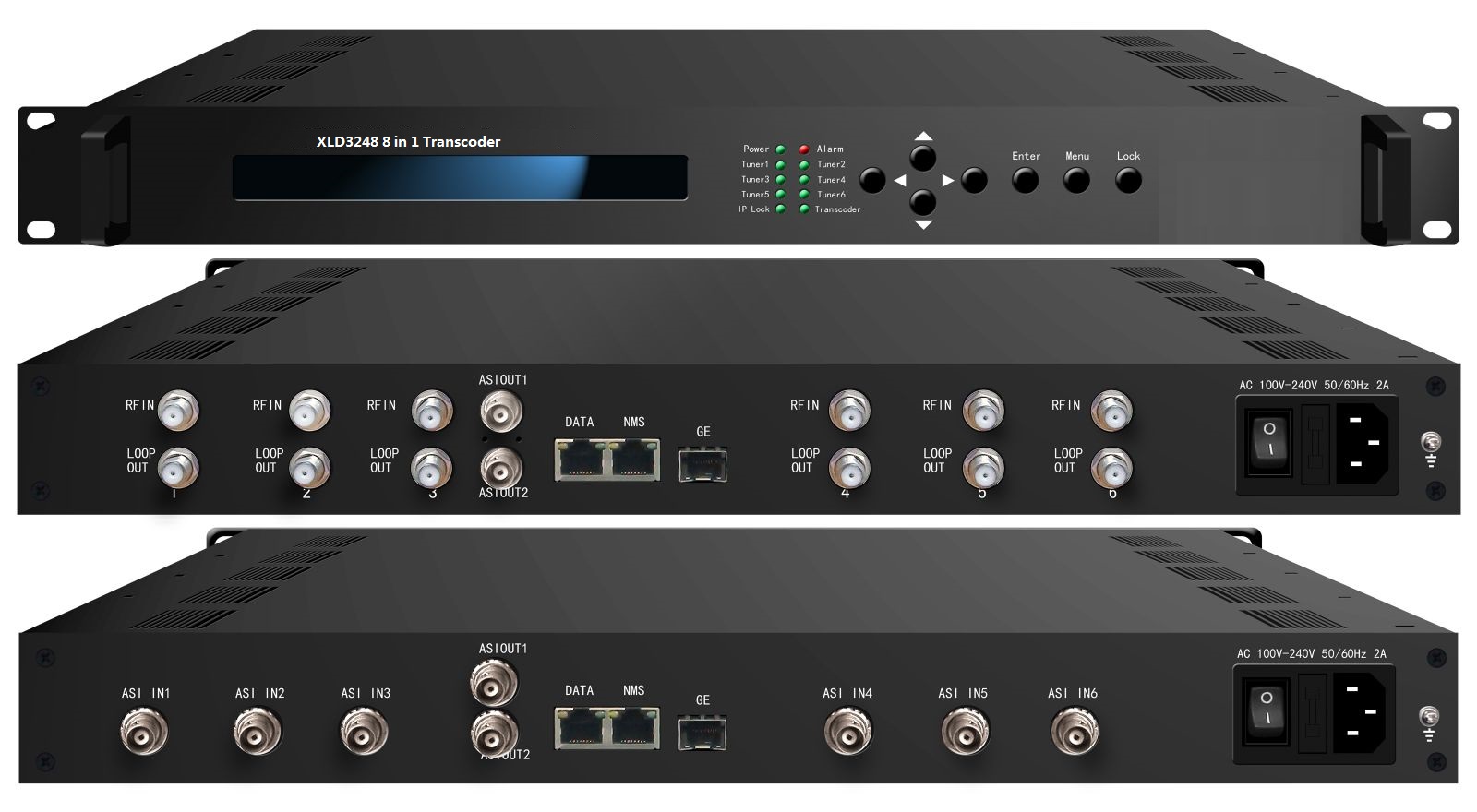

XLD3248 (XLD3248B) is a professional bidirectional trans-coder to convert video between H.264 and MPEG-2 format and also to trans-code between HD and SD programs simultaneously. It is equipped with 6 tuner inputs to receive channels directly from satellite, or ASI /IP inputs to receive digital channels. (XLD3248B is a simple version with 4 Tuners only or 4 ASI inputs only without IP input.) After trans-coding, it outputs MPTS & SPTS through the DATA port or ASI port.

This trans-coder supports advanced re-multiplexing and can effectively provide operators with real-time code rate switch and optimize the video with its high performance.

BISS function is now embedded to descramble your tuner input programs and CC function as well to transport your closed caption (or teletext).

It can be easily managed through web NMS system, and has become an ideal solution for operator to provide high quality video trans-coding..

Key Features

* Support 8*IP (SPTS/MPTS) input plus 6*tuners (or 6*ASI) input --- NDS3248

4* tuners (or 4*ASI) input --- NDS3248B

* Support 8*SPTS & 1*MPTS (UDP/RTP/RTSP) output; 1 ASI (MPTS) output

* Video Trans-coding: MPEG-2 SD/HD and H.264 SD/HD any-to-any

* Audio Trans-coding: AAC, MP2 and AC3 any-to-any or pass-through.

* Support maximal 8 SD or 4 HD programs trans-coding

* Support maximal 8 channel audio trans-coding

* Support HD and SD resolutions

* Support CBR and VBR rate control

* Support CC (closed caption)

* Support BISS descrambling

* Support IP out with null packet filtered

* Advanced re-multiplexing

* LCD & Key board local control; web NMS management

Principle Chart (NDS3248)

Transcoding Mode Example

Technical Specifications
