Brief Introduction

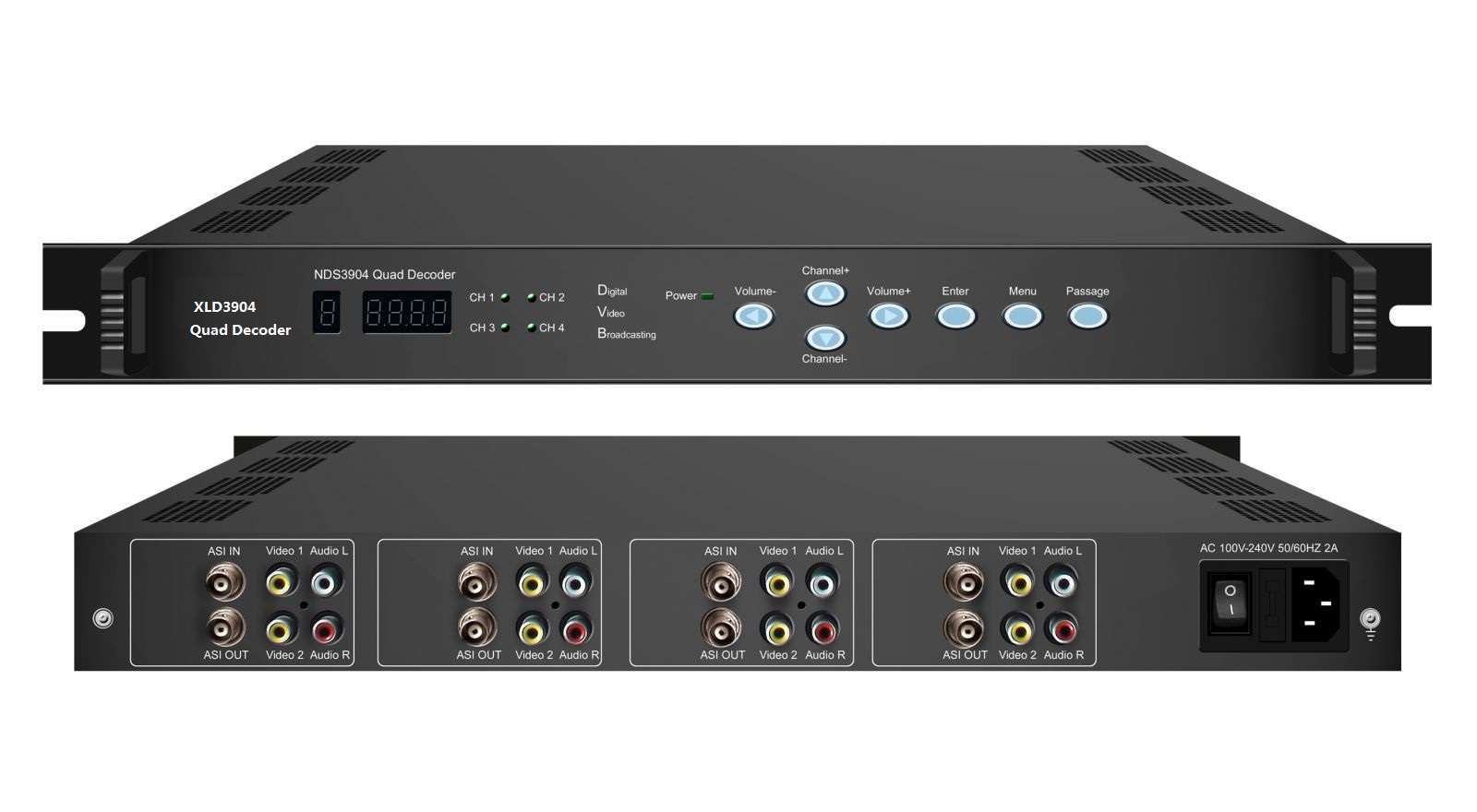

XLD3904 quad decoder is Xielide’s new design 4-in-1 MPEG2 TS decoders. It supports 4 ASI input and after decoding progress, it outputs 4 separate A/V signal. It also support TS loop out over ASI port. This modularized design largely saves the cost of the transport freight, the space of frame rack and power consumption. In general, it can provide users with more convenient operating and maintenance experience.
Key Features
* 4 separate modules in 1U case
* 4 channels ASI input, 4 channels A/V output, 4 ASI loop out
* User-friendly and easy operating
* Auto-switching PAL/NTSC
* Auto-saving the latest channel
Technical Specifications
|
Signal Input |
4×ASI (BNC interface) |
|
|
Decoding Standard |
MPEG-2 |
|
|
Video OUT |
4×CVBS (RCA interface) |
|
|
Audio OUT |
4×Stereo Audio (L/R) |
|
|
ASI Loop OUT |
4×BNC interface |
|
|
Miscellaneous |
Management |
LED /Control Buttons |
|
Dimension |
44mm×482mm×410mm |
|
|
Temperature |
0~45℃(Operating), -20~80℃(Storage) |
|
|
Power |
AC 90~220V, 50/60Hz, 25W |
|
Principle Chart
