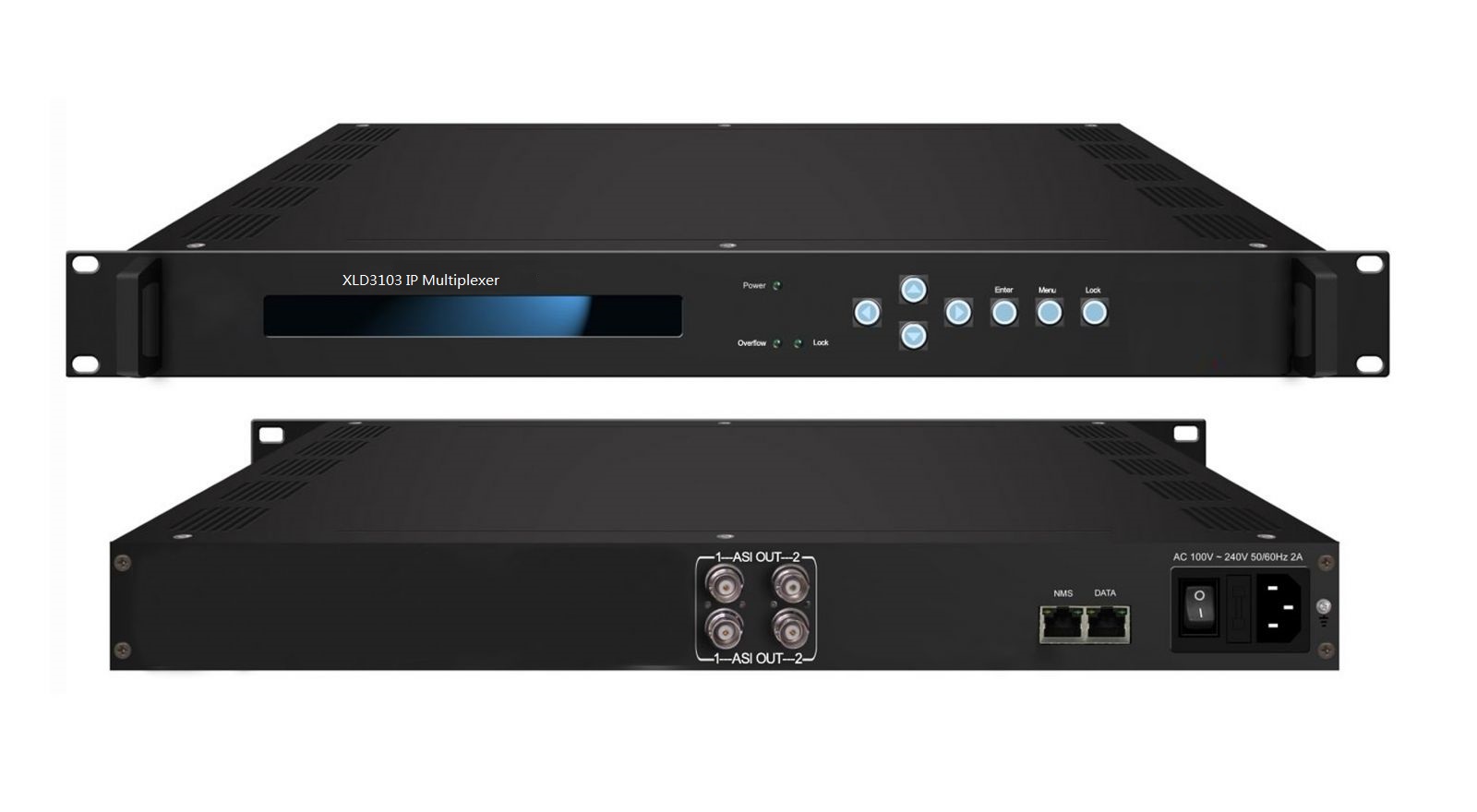

XLD3103 IP multiplexer is a professional TS processor used in digital TV broadcasting head-end system. It receives up to 512 IP (SPTS/MPTS) channels and multiplexes the input programs into 2 TS stream output with EPG (electronic program guide), CA (conditional access), data broadcasting and etc inserted.
For easy management, it can be controlled and upgraded via web server in addition to front panel keyboard. Its high integration and cost effective design have made it widely used in the CATV Broadcasting system.
Key Features
* Fully complying with ISO13818 and EN300 468 standard
* 512 IP (SPTS/MPTS) input over UDP
* 2 independent groups of ASI output (each group has 2 ports)
* 2 IP output over UDP
* Support accurate PCR adjusting
* Support PID passthrough, re-mapping, multiplex up to 2048 PIDs per out channel
* Support PSI/SI rebuilding and editing
* Huge buffer memory for saving the overflowing code stream
* LCD/keyboard and Web-based NMS management
Principle Chart
Specifications
|
Input |
IP (RJ45,GE) |
512 x MPTS/SPTS, Unitcast/Multicast, UDP Protocol IGMP V2/V3 |
|
Re-multiplex |
PID re-mapping (auto or manually available) |
|
|
PCR accurate adjusting |
||
|
Automatic generating PSI/SI table |
||
|
PID passthrough |
||
|
Support multiplex maximum 2048 PIDs each output channel |
||
|
Output port |
ASI |
2 x independent channels of ASI output (each channel has 2 ports) (up to 210Mbps) |
|
IP(RJ45,GE) |
2 x IP (Unitcast/Multicast), UDP Protocol (up to 230Mbps) |
|
|
NMS port |
Ethernet port |
GE |
|
General |
Demission |
482mmx410mmx44mm(WxLxH) |
|
Weight |
2.0kg |
|
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
|
|
Power supply |
110VAC±10%，50/60Hz; 220VAC±10%，50/60Hz |
|
|
Consumption |
<25w |
|
