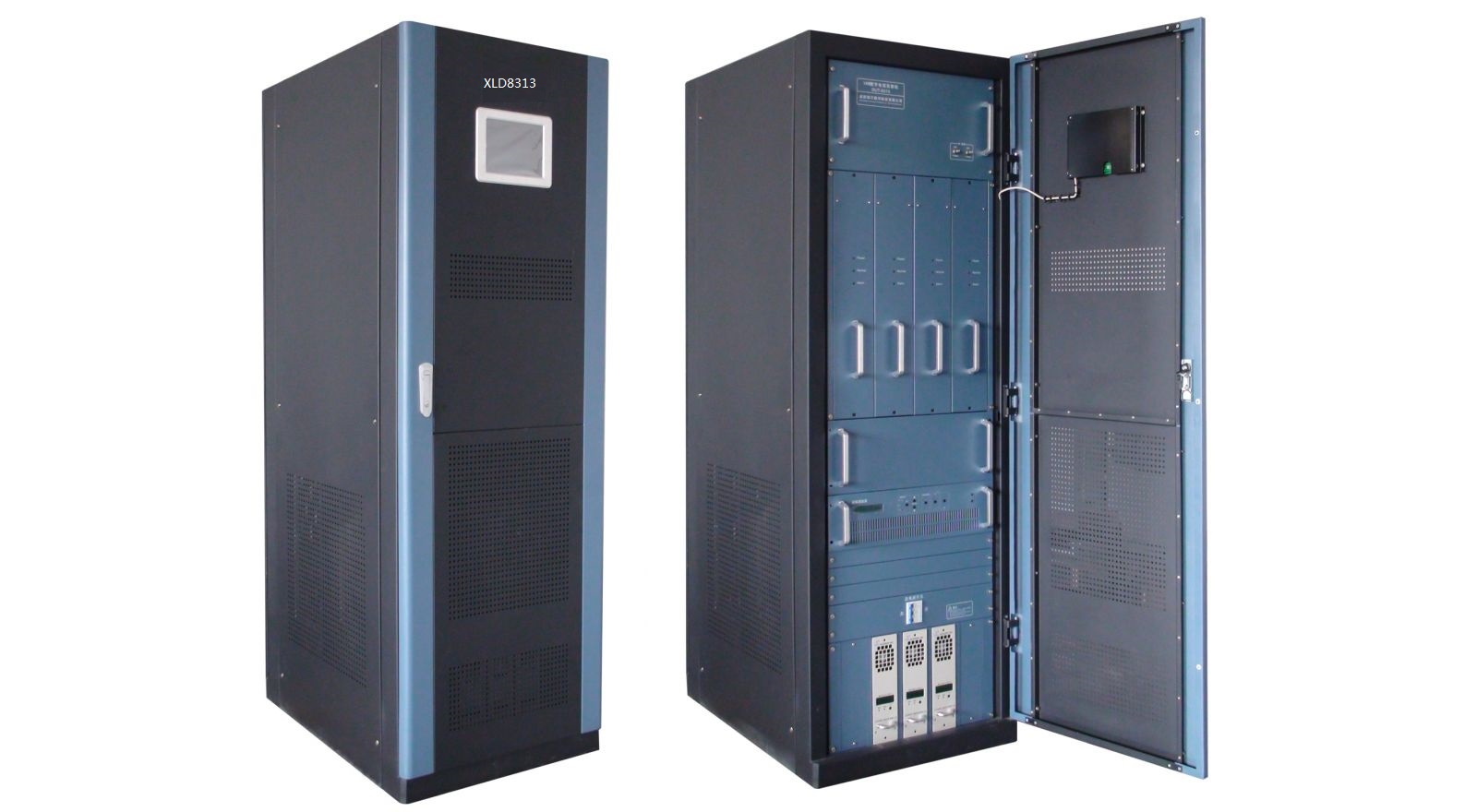

XLD8313 is a professional DVB-T digital transmitter developed by Xielide, which gives sustained power (1000W) output. Its compact structure design has greatly saved space for your room. It supports SFN and MFN network mode, output with both signal carrier mode and multi carrier mode, and supports signal channel and broadband transmission.
The frequency range of XLD8313 is from 470MHz～566MHz, 606MHz～806MHz. This transmitter has a very high linear and high reliability as it takes high gain and high linear LDMOS tube amplifier module. Furthermore, it supports AGC function to keep sustained power output.
XLD8313 1000W DVB-T digital transmitter can be widely used in HD/SD digital TV signal transmitting and broadcasting system.
Key Features
* Intelligent and modularized amplifier unit, takes high power gain and high linear LDMOS tube amplifier module design
* Low power consumption and super linear design to improve the transmission power, and reduce the nonlinear distortion
* Support AGC function with sustained power output to allow the transmitter a good stability and reliability
* Support MFN and SFN system
* Support fault diagnosis function
* Full digital front panel control, easy operation.
* LED on the front panel support alarm and signal monitor
* Stabilized-power supply with wide range of voltage and high efficiency
* Amplifier and switching power supply one-for-one configuration, connect directly to each other, reducing wired loss
* Cooling system with low consumption and low noise
* Multi lightning protection measures, good protection for whole equipment.
* 24-hour working unmanned, user friendly design
* Easy to install, elegant appearance
Technical Specifications
|
Basic Parameters |
System standard |
DVB-T/DVB-C/MPEG-2 |
|
Modulation Mode |
QAM4/16/32/64 |
|
|
Frequency Range |
470MHz~806MHz |
|
|
output rating |
1000W |
|
|
Output characteristic impedance |
50Ω |
|
|
variation of output power |
±0.25dB |
|
|
In-band stray |
≤-60dBc |
|
|
Out-of-band suppression |
≥65dBc |
|
|
Input |
frequency |
470MHz~806MHz |
|
Input Level |
-20 dBm±3dB |
|
|
Input reflection loss |
≥15dB |
|
|
Input Interface |
‘N’ |
|
|
Output |
RF output power |
1000W |
|
Output frequency |
470MHz~806MHz |
|
|
Output impedance |
50Ω |
|
|
frequency response |
±0.75dB |
|
|
Shoulder level |
≥36dB@central freqnencyIF±4.2MHz |
|
|
output reflection loss |
≥20dB |
|
|
Output interface |
1-5/8 EIA |
|
|
Environment condition |
Working temperature |
-20~+50℃ |
|
Storage temperature |
-30~+75℃ |
|
|
Relatively humidity |
＜95% (25℃ no condensation) |
|
|
Cooling mode |
inside cooling fan |
|
|
atm press |
86~106kPa |
|
|
power supply |
AC, 220V±10%/50Hz |
|
|
Machine room requirement |
less dust, no shake |
|
|
Working temperature |
-20~+50℃ |
System Principle
Order Info
|
Model Number |
Description |
|
XLD8313(800W-I) |
800W Indoor |
|
XLD8313(1000W-I) |
1000W Indoor |
|
XLD8313(1200W-I) |
1200W Indoor |
XLD8313 (1000W) Terrestrial Digital TV Transmitter Components -BLF888A
|
Serial No. |
Component Name |
Specs |
Qty |
Remarks |
||||
|
|
Final Power Amplifier |
300W |
4 |
|
||||
|
|
Pre-Exciter |
Pre-Amplification and Optical Receiving Module |
20W |
1 |
|
|||
|
1W Power Amplifier |
|
1 |
|
|||||
|
20W Final Power Amplifier |
|
1 |
|
|||||
|
Final Amplifier Power Board |
838E |
1 |
|
|||||
|
LCD Screen |
+5V |
1 |
|
|||||
|
Front Panel |
6175F |
1 |
|
|||||
|
Power Supply |
SP320-48 |
1 |
|
|||||
|
Power Supply |
SP100-12 |
1 |
|
|||||
|
|
Monitor Unit |
|
1 |
|
||||
|
|
Power Supply for Final Amplifier |
HX2500-48VH |
3 |
|
||||
|
|
Filter |
|
1 |
As per order. (In case multiple single-channel transmitters are involved, a power combiner is required.) |
||||
|
|
||||||||
|
|
Hard Feeder |
Φ40 |
2m |
These parts are standard configuration. If there are special requirement, please remark on order form. |
||||
|
|
Elbow |
|
3 |
|||||
|
|
Hoop |
|
3 |
|||||
|
|
Hose Clamp |
|
13 |
|||||
|
|
Central Pin |
|
3 |
|||||
|
|
Flange |
Φ40 |
1 |
|||||
|
|
||||||||
|
|
Cooling Fan |
YWF4E-400 |
2 |
2pcs with 1 for backup |
||||
|
|
Cabinet |
|
1 |
Check with Cheng Zhifu for size |
||||
|
|
Wooden packing case |
|
1 |
Check with Cheng Zhifu for size |
||||
|
|
antenna |
|
1 |
As per order |
||||
|
|
Feeder |
|
|
As per order |
||||
|
|
Accessory |
1 set |
|
glue*1pcs；insulating tape*1pcs；grounding wire*1pcs；safety fuse 5A*5pcs；safety fuse 2A*5pcs； |
||||
|
|
Whole Weight |
kg |
||||||
