Product Overview

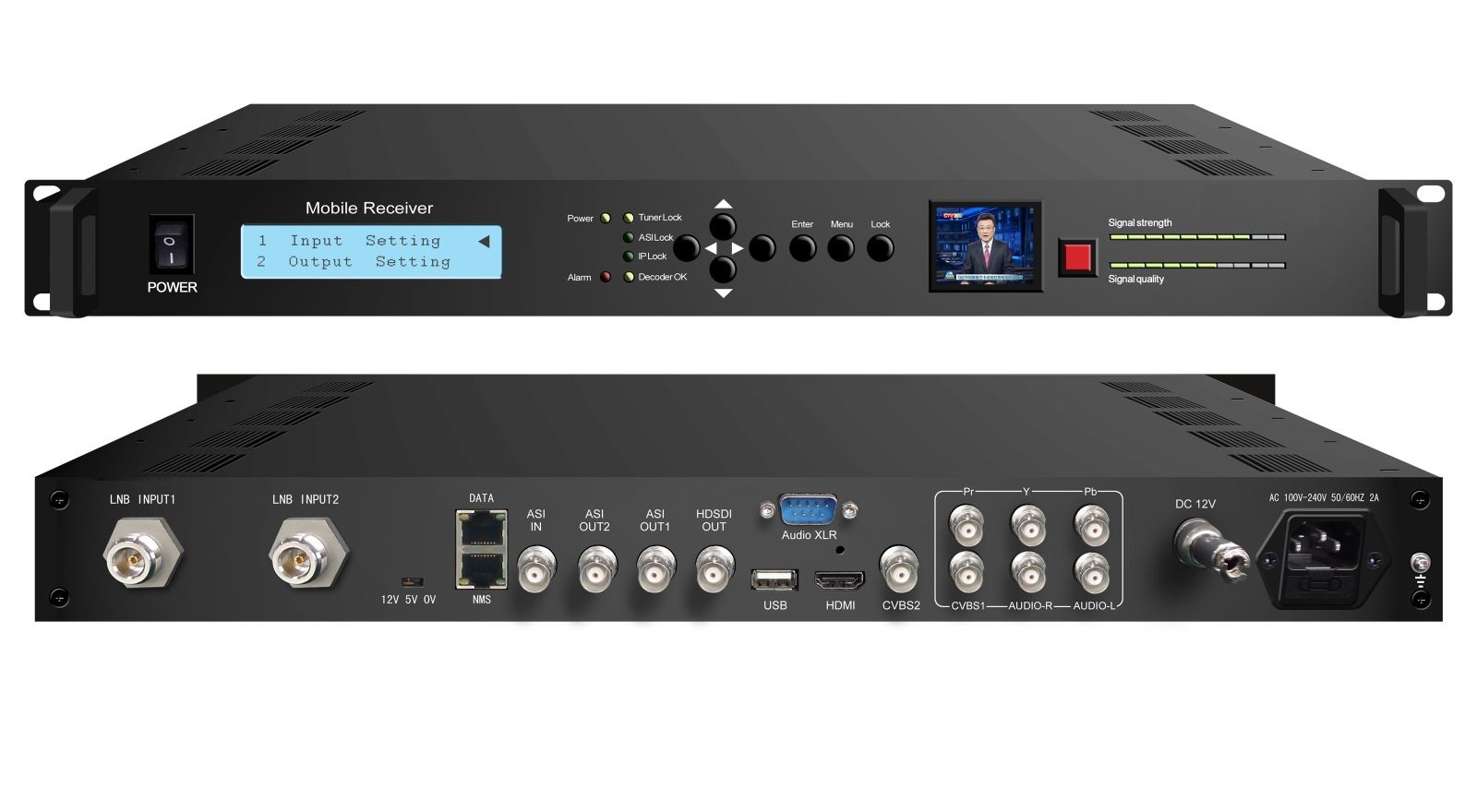

XLD2098HIA is a professional mobile digital receiver to convert the input tuner signals to crystal clear digital or analog video in various formats available at CVBS, YPbPr, HDMI, and HD-SDI.
It is designed to support the industry standard 576i/480i, 576p/480p, 720p and 1080i decoding.
It is also equipped with 1 ASI input, 2 ASI output ports and a data port for both input and output to make it possible to process more programs.
Additionally, the implemented web server allows the configuration of the DR-2098HIA with a standard web browser. Basic configuration can also be done locally with the LCD display and navigation buttons. The LCD monitor can, at the same time, realize the real-time observation about broadcasting status.
Key Features
convenient and efficient network transmission
dual LNB input
real-time LED monitor for decoded program
multi Audio/Video format output: 1*HDMI, 2*CVBS, 1*YPbPr, 1*HD-SDI
multiple video resolution: 576i/480i, 576p/480p, 720p and 1080i decoding
Support ASI input and output, IP input and output
Support Keyboard and LCD operation
web NMS management via Ethernet port
Specifications
|
Input Parameters |
||
|
Tuner in |
Signal source |
2*LNB, N-L16 (negative) |
|
Receiving frequency |
30MHz～900MHz |
|
|
Bandwidth |
2MHz, 4MHz, 6MHz, 8MHz |
|
|
Input impedance |
50Ω |
|
|
Receiving restriction |
20dμBv～103dBμv |
|
|
Demodulation mode |
COFDM/DVB-T |
|
|
Transport Stream in |
ASI input |
1*ASI, BNC (negative) |
|
IP input |
UDP Unicast/Multicast (100M, RJ45) |
|
|
Output Parameters |
||
|
Stream out |
Video output port |
1*HDMI, 2*CVBS, 1*YPbPr, 1*HD-SDI |
|
Audio output |
L/R channel (unbalanced); XLR (balanced) |
|
|
ASI output |
2*ASI, BNC (negative) |
|
|
IP output |
UDP/ Unicast/Multicast (100M, RJ45) |
|
|
Resolution |
HDMI |
1080i@25, 29.94fps, 720p @ 50 59.94fps, 576i@25 fps, 480i@29.94 fps |
|
CVBS |
576i@25 fps, 480i@29.94fps |
|
|
YPbPr |
1080i@ 25, 29.94fps,720p@50, 59.94fps |
|
|
HD-SDI |
1080i@25, 29.94fps,720p@50, 59.94fps, 576i@25 fps, 480i@29.94 fps |
|
|
Data Formatting |
MPEG-2, H.264 |
|
|
BER |
≤10-8 |
|
|
Miscellaneous |
||
|
Management |
Web NMS via Ethernet; LCD & Key board |
|
|
Upgrade |
External USB driver |
|
|
MTBF |
≥10000hrs |
|
|
Working voltage |
DC 10V～16V; AC 90V～250V |
|
|
Feed voltage |
DC 10V～16V |
|
|
Power dissipation |
12W |
|
|
Dimension |
19″1U, 483×400×44(mm) |
|
|
Weight |
3.5Kg |
|
Principle Chart
