Outline:

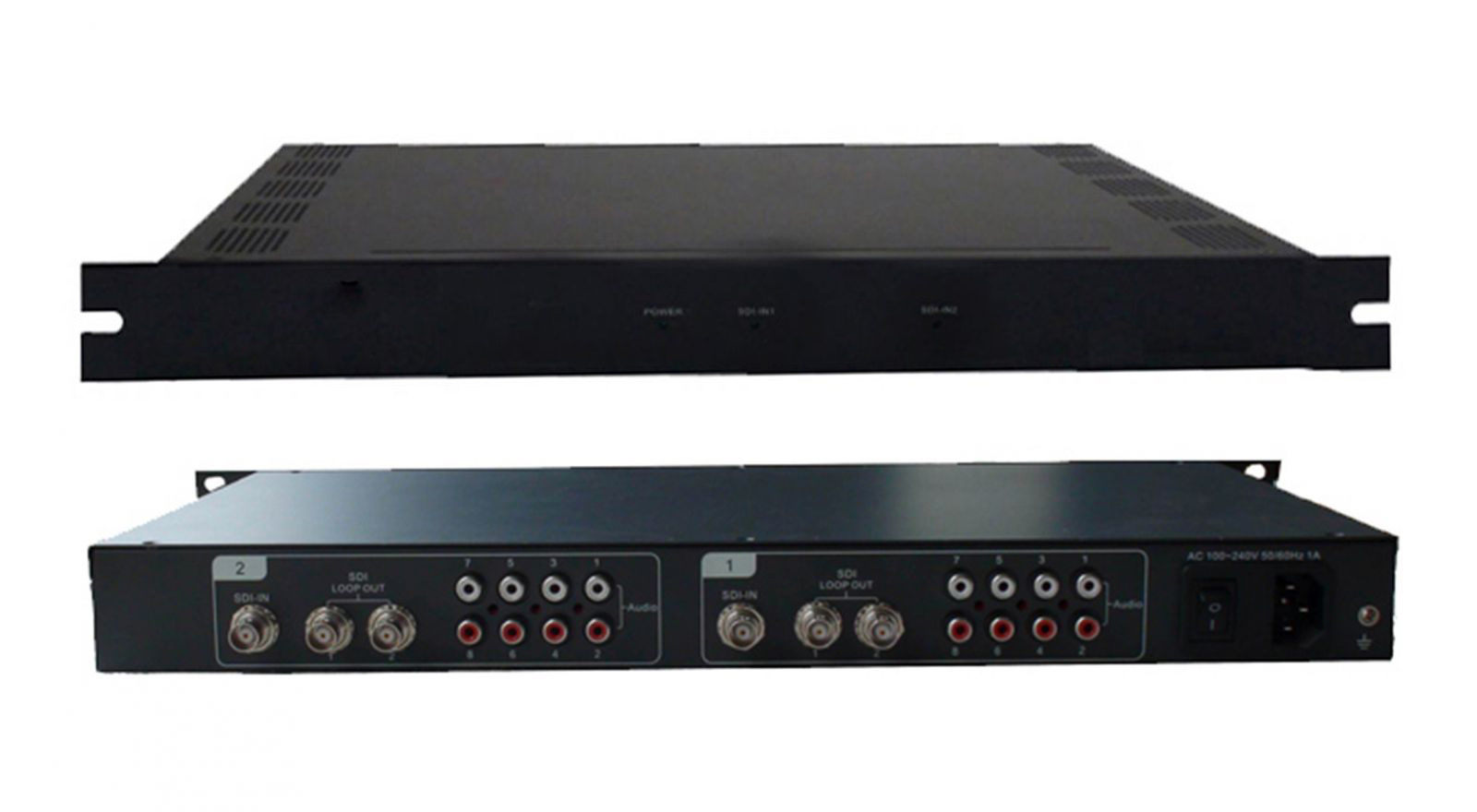

SDI to Analog
Audio Converter is mainly used for separating the audio signal for the inputted
SDI signal and converting the digital audio signal into analog audio signal.
Besides, this product also has the function of loop output. And every piece of
this device concludes two mainboards. This product is characterized by simple
operation, good performance, and elegant appearance.
Features:
1.Support
3G/HD/SD SDI.
2.Support digital audio signal encoding in LPCM format and
support Streeo/5.1/7.1 channel analog audio output.
3.Support 3G/HD/SD SDI
signal loop out.
Specifications:
| Input | 2 SDI input interfaces, 2 SDI/3G/HD/SD single loopout interface (BNC), and 8 RCA output interfaecs | |
| Interface | SDI IN | 2*BNC *(independently) |
| SDI LOOP OUT | 2*BNC | |
| Audio output | 8 RCA streeo/5.1/7.1 channel | |
| Format | SD/HD/3G | |
| Embedded audio | SD/HD/3G | |
| Audio Output | Interface | 8 RCA stereo/5.1/7.1 channel |
| Max output level | 3.75Vpp | |
| SNR | 105dB | |
| THD+N | 0.002% | |
| Max length of cable | SD: 250M (Belden 1694A) | |
| HD: 100M (Belden 1694A) | ||
| General | Environment | 0~45℃(work)；-20~80℃（Store） |
| Size | 482mm(width)*410mm(length)*44mm(height) | |
| Weight | 1.2Kg | |
| Consumption Max consumption: | 8W | |
| Power | AC 220V±10% 50/60Hz; or AC110±10% 50/60Hz | |
