Outline

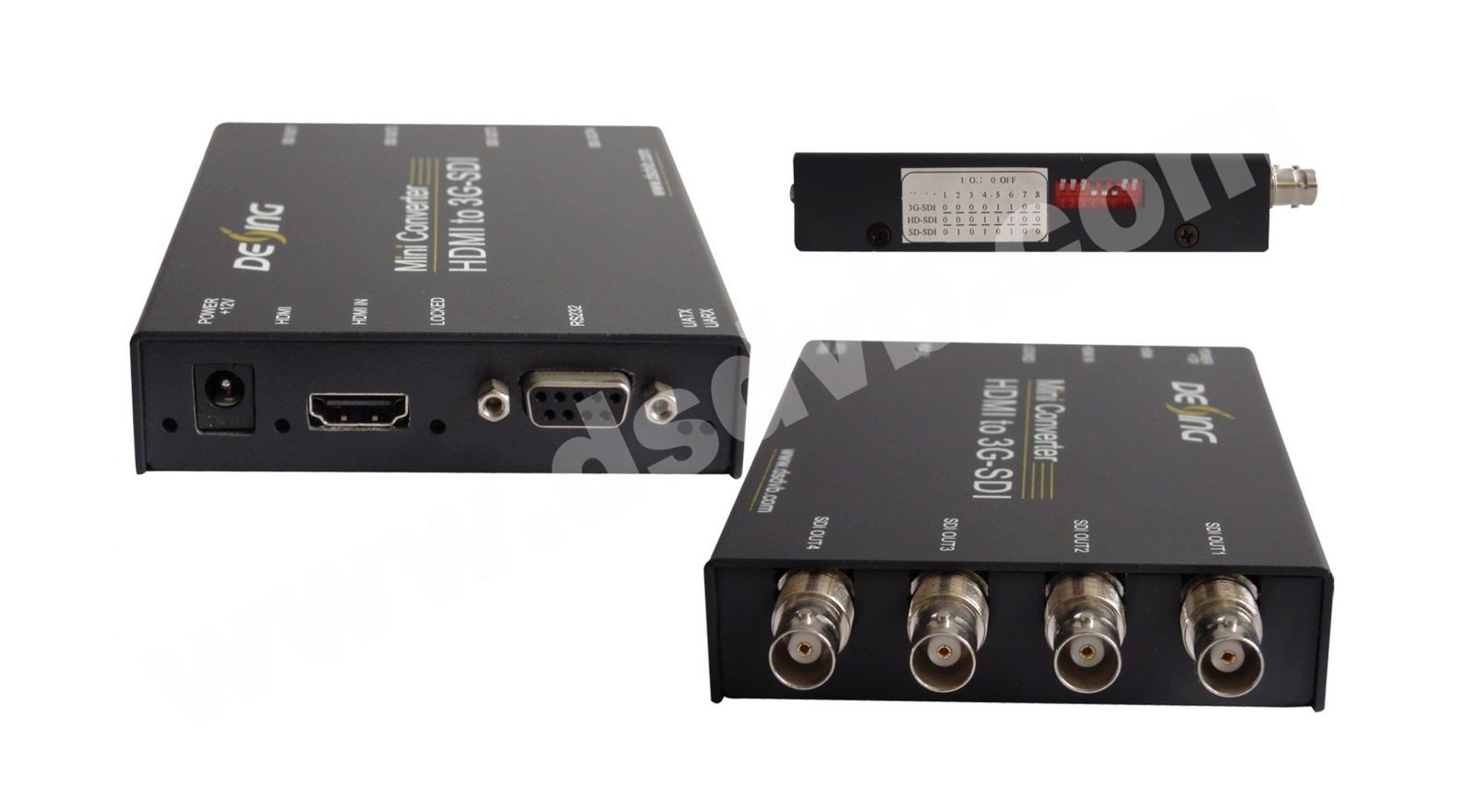

HDMI to 3G-SDI converter can convert HDMI signals into SD, HD or 3G SDI signal. With one channel HDMI input, four channels 3G SDI output (used in mirror mode is used to display video). Can be long-distance transmission after converting, and directly connected to the video switcher or digital video recorders. The device is available to all professional high-definition audio / video equipment.
Features
- Support HDMI 1.3, HDCP 1.3 and DVI 1.0 Standard
- Support PAL or NTSC format's SD or HD, 3G audio and video SDI signal output
- Provide the highest resolution up to 1920x 1080P 60Hz 12-bit color depth
- Supports lossless compressed digital audio (Dolby True HD, Dolby Digital Plus and DTS-HD Master Audio)
- With 10-bit resolution, supports higher precision and dynamic screen
- Support output: SD-SDI - SMPTE 259M-C (270Mbps),HD-SDI-SMPTE 292M (1.485, 1.485 / 1.001Gbps), 3G-SDI-SMPTE 424M/425M (2.97/3.0Gbps)
- Support audio conversion (embedded audio function)
- Advanced features to reduce noise and increase the detail
- With a serial RS-232 control interface
- Ultra-Low Power
Specifications
The output video
signal bandwidth: 4 x 3.0Gbps
The highest input
resolution: 1920 x 1080P 60Hz 12-bit color depth
The
highest output resolution: Quad 3G-SDI 1080p
Supports
480i, 480p, 576i, 576p, 720p, 1080i, 1080p and other common formats
HDMI 1.3 and compliant HDMI 1.2 standards and equipment
HDMI port: A-type 19-pin female header
SD/HD/3G SDI port: BNC female
Control Ports: Serial RS-232
Power Supply: 12V DC
Power loss:
4W (max)
Size: 116 (L) X 93 (W) X 24 (H)
