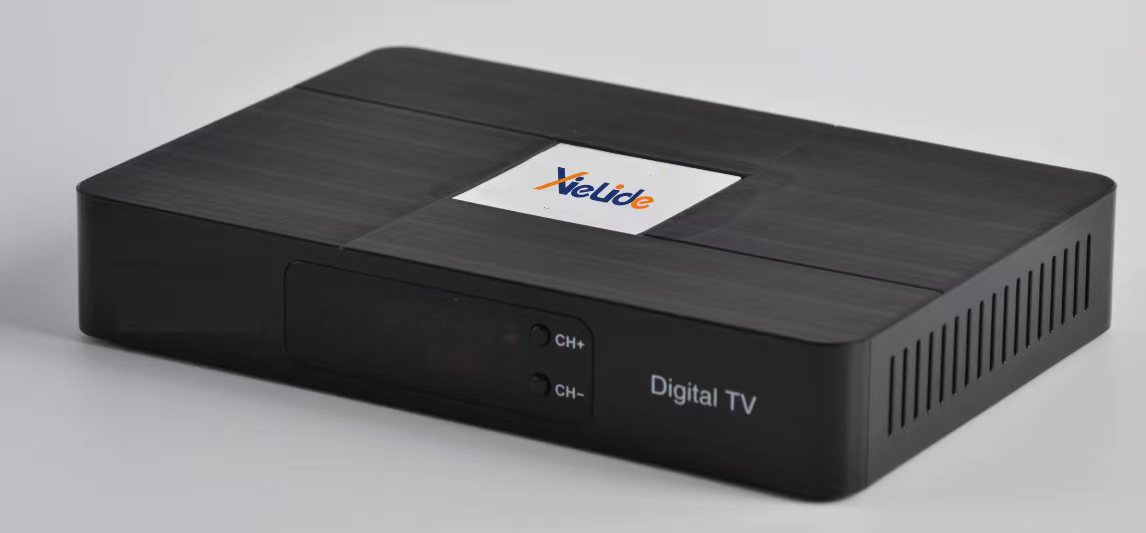

ME-B176-569

Product overview

  • Product model:Professional Digital Cable TV STB/ DVB-S2/T2 HD ST
  • Product line:DVB-C/T/T2/S/S2 HD STB

product details

Specification

●HD DVB-C set top box compliant with MPEG2 and MPEG4 H.264 and AVS+

●Compatible with HDTV channels and equipped with HDMI connector

●EPG & DVB Teletext & DVB Subtitles

●Auto search & Blind search & network search function

●Support Media Player

●Support Dexin CAS



Technical Specifications



Core System

●Processor : M88CC6000 (#1 CPU: MIPS 24KEf TM and #2 CPU: MIPS 24KEcTM)

●Broadcast tuners:   1 DVB-C

●Memory:                     8MB Flash

128MB RAM DDR3

●STB upgrade:            Through OTA or USB Disk



Tuner & Demodulator

●Input Frequency: 110MHz-860MHz



●Demodulator:

●Symbol rates:

256,128,64,32 and 16QAM demodulation supported      0.45~8.5MBauds





Video Decoding

●H.264 BP (with noASO/FMO), MP& HP@L3/L4.1 ●MPEG-2 MP@ML/HL

●AVS Jizhun profile@L6.0/L4.0

●AVS Broadcast profile@L6.0/L4.0

●MPEG-4 SP Profile, Advanced Simple Profile@ Level 5

without GMC/Data Partitioning/Reversible VLC

●Xvid 1.3.2 without GMC and DivX without GMC

●H.263 baseline profile







Audio Decoding

●MPEG-1/2 Layer I/II/III

●MPEG-2/4 LC-AAC, MPEG-4 HE-AAC@Level 4 ●Dolby AC3/AC3+ (for M88CC6000-1MD only)     ●DRA 2 CH/5.1 CH


Connectivity

●Video: HDMI v1.4

● RCA out (CVBS, Audio L/R)

●USB: 1xUSB2.0 host device









Front panel

●Display:   3 LED Indicator

Power Red LED

Lock Green LED

●Button:   Standby, VOL+, VOL-

CH+, CH-, Menu, OK



Setup environment

●Function temperature:0-40 degree Celsius

●Power consumption: Max 10W     ●Voltage:90V~250V AC (50/60Hz)

Proposed Accessories

●Remote control unit

●RCA Connect Cable

●RCA Connect Cable

●HDMI Cable

●2*7# Batteries



Dimensions

●W x H x D(mm):240*165*40

●Weight(kg):1.0

●Packaging dimension(mm):275*255*48 ●Weight include packaging(kg):1.1
